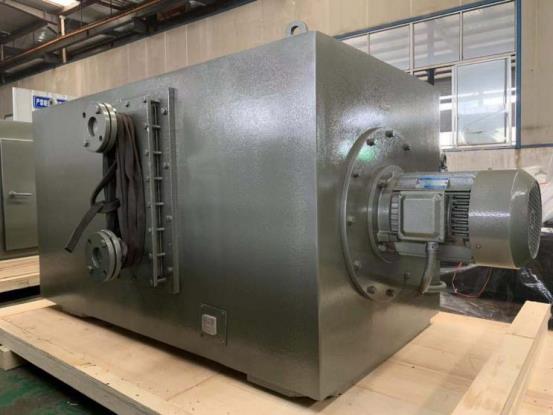

Large DC Motor

Large DC Motor

The Z series of large DC motors is a new generation of new products developed by our company. The new design has the characteristics of high output power, low noise, small vibration, high efficiency, high reliability and good safety performance.

Technical data at a glance

Power range:

1250-2500 kW 1500kw-5000kw 5MW-50MW

Rated armature voltage:660, 750, 850, 950, 1000V

Shaft height: 810 to 1000mm 1500-5000mm

speed: Up to 1000 rpm

Protection level:IP23, IP44 and IP54

structure type:IM 1001

Cooling type:IC17 / IC37 / IC W37 A86

Stator design:Silicon steel lamination

Standards compliant:

IEC, DIN, GB

Brief description

Customer benefits

· Large output power, large torque, adjustable speed

· Adopt VPI vacuum pressure immersion F-level insulation system, can withstand short-term overload operation

· Low loss through high efficiency

· Using an optimized current circulation system to achieve a long brush life

· Heater is installed inside the motor

· The commutator is equipped with protective doors on both sides

· There is a grounding brush on the shaft

Typical application

· Cold rolling and hot rolling mills in large metallurgical industry

· Large mixer in rubber and plastics industry

· Coal mill in the mining industry

· Hydroelectric winch

· Large blower
